Why the Bugatti Chiron Looks the Way it Does

Bugatti

Source: Bugatti

When you are designing a 1,480-horsepower car that can top 250 mph, cooling and aerodynamics become very important factors. That was the task Bugatti director of design Achim Anscheidt faced when drawing up the Bugatti Chiron, and he came to the same conclusion.

“The main elements that you see on this car, from the rear, from the side, and the front, are based on form following performance,” Anscheidt said in an interview at the Geneva Motor Show.

Bugatti

Source: Bugatti

The increases to horsepower, torque, and top speed, and the resulting aerodynamic requirements meant the designers had to work with the engineers to make this car possible. “The limits were so high that we realized we can only achieve this with a win-win collaboration of design and engineering. And that set up a system that gave me a chance to solve technical issues to better the performance,” Anscheidt said.

Strong lines, quiet details

Bugatti

Source: Bugatti

The Chiron is defined by just a few lines, including the strong C shape along the sides, the cut off and open rear end, the low nose with the signature horsecollar grille, and the long, low line on top of the car from nose to tail. “Make the elements that you justify technically very strong — the C shape, the rear end, the front architecture — and that should be the first and primary read. Everything else goes into the background,” Anscheidt said. “The stronger those lines are and the more justified they are, the more the other elements and the other surfaces can be quiet, can be really nice and clean.”

Anscheidt feels this type of design gives a car longevity. He compares it to Bauhaus buildings in Berlin. Almost a century after they were built they aren’t contemporary, but they are beautiful and they represent their era. Longevity is important to Bugatti because this is the type of car that a buyer can pass down to the kids or grandkids.

Bugatti

Source: Bugatti

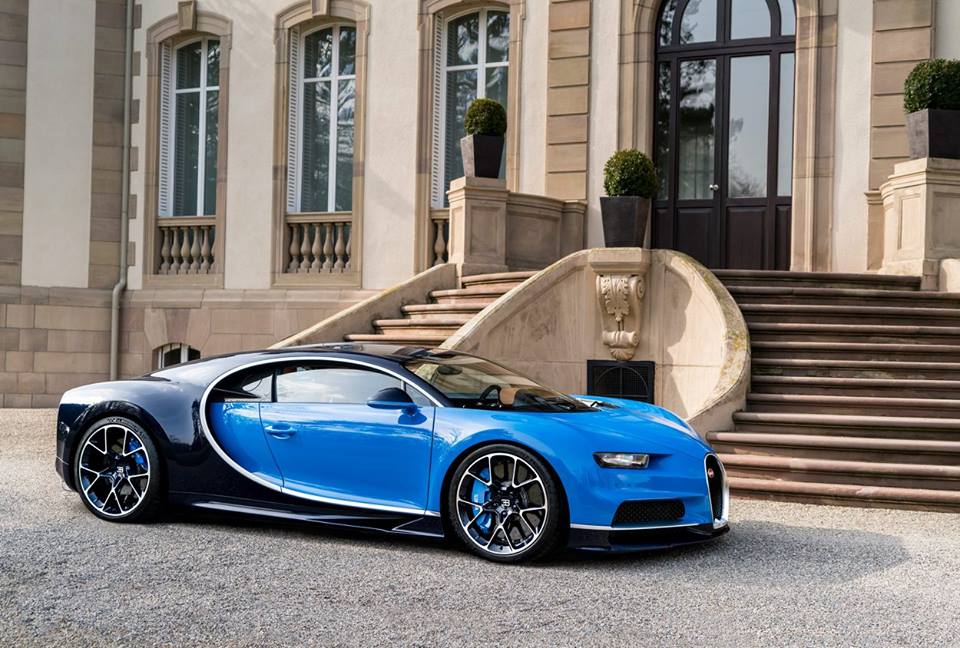

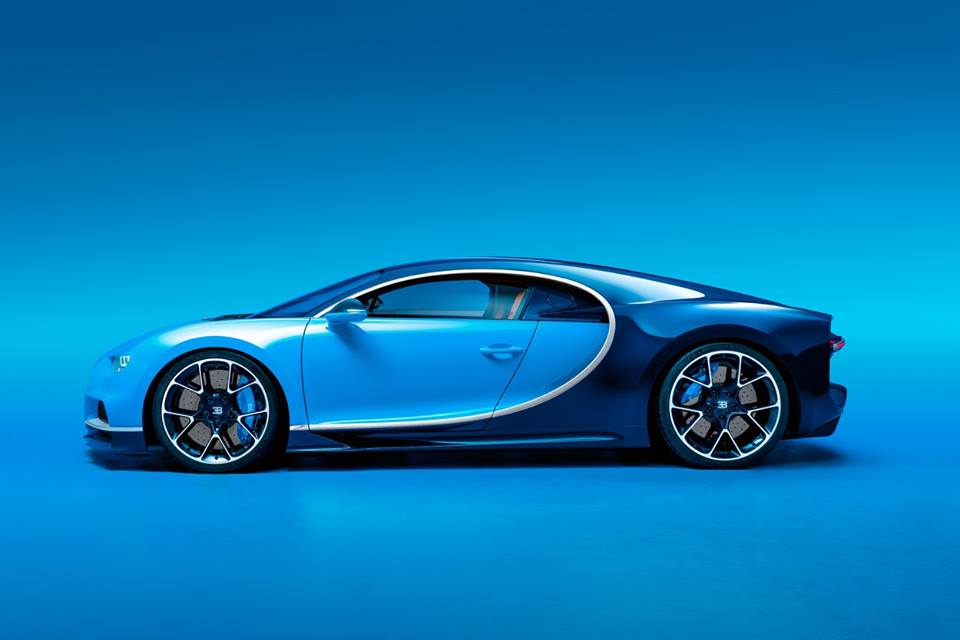

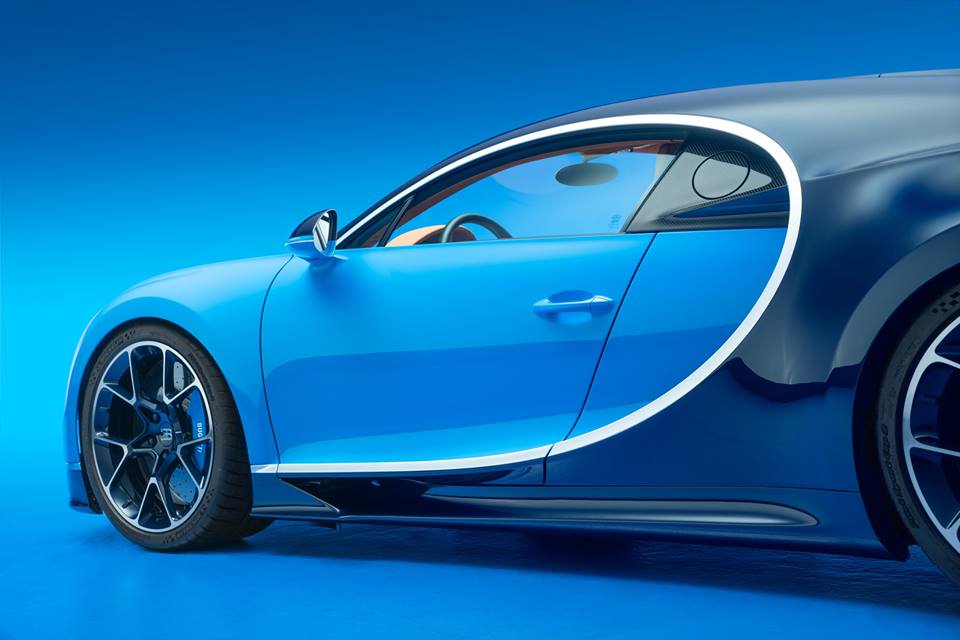

That C shape dominates the side of the car, and while it has historic ties, it is really about function. “It looks like a romantic sideline and you can identify it with the signature of Ettore Bugatti or the Type 41 or even the signature of Louis Chiron. But the real reason for that line is a performance function,” Anscheidt said.

He further explained that the C is one large intake that the car’s massive W-16 engine needs. The air that travels along the body side is relatively turbulent and it arrives with about 60 percent efficiency in the lower portion of the C’s massive air intake area. The air that runs along the greenhouse arrives with 85-90 percent efficiency at the top of the C’s intake.

Aside from the large C shape, the fenders have no other character lines. Anscheidt says it was a challenge to go from the “beautiful, beautiful Veyron fender, and find a new interpretation that is equally generous and equally organic, but different.”

The rear view

Bugatti

Source: Bugatti

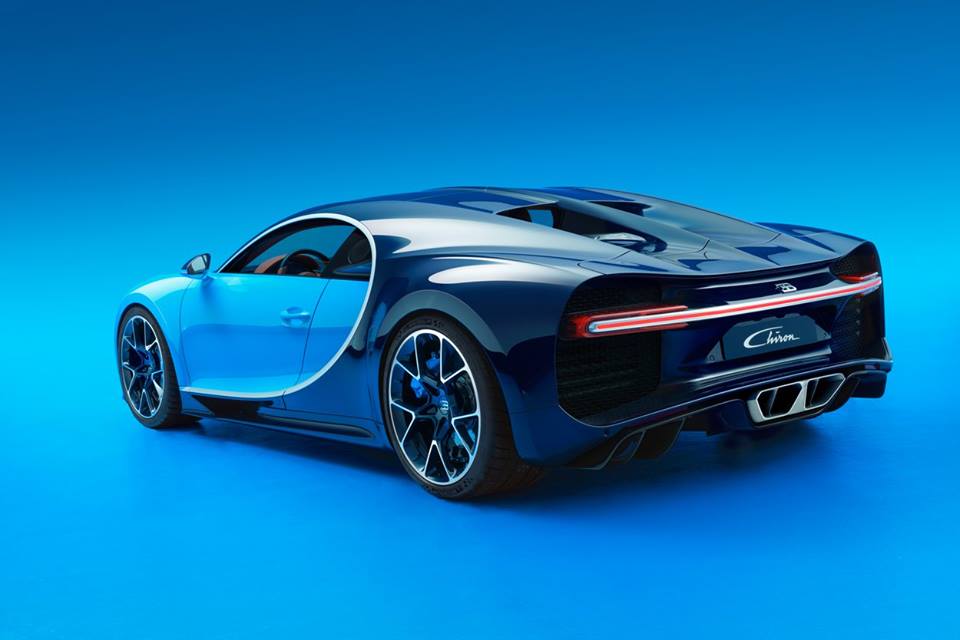

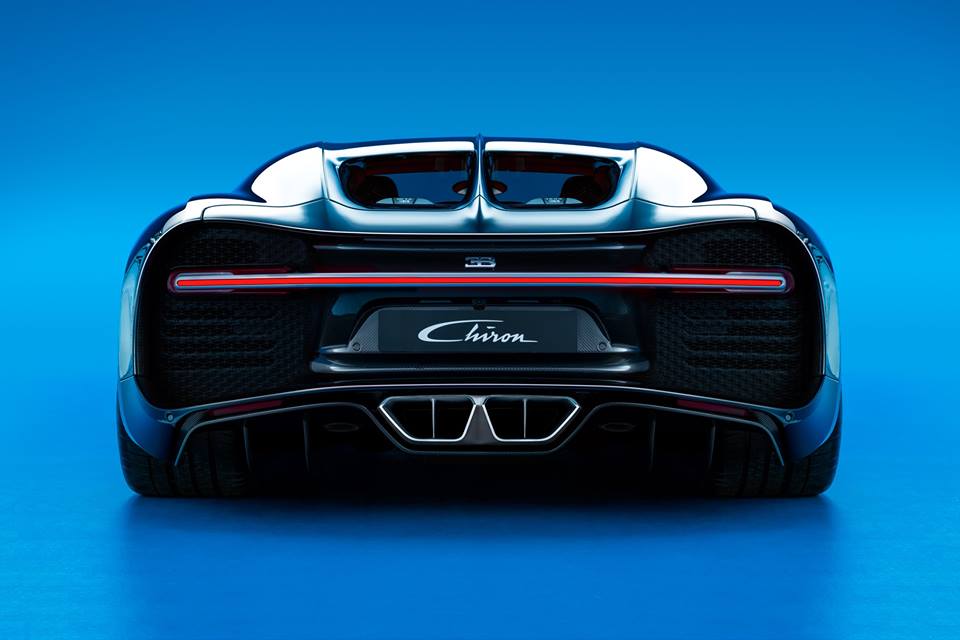

The rear end has a cutaway look, which Anscheidt says is nothing new for a supercar. However, aerodynamics and cooling play a large role here. “The soft pressure zone is extremely strong behind the car, and that allows all the hot air to get sucked out and that’s why all the ducts are in there. Otherwise, the power increase of 25 percent would not be possible to handle,” Anscheidt explained.

The thin LED taillight doesn’t have much aerodynamic function other than staying extremely slim so that as much heat as possible can escape from the engine compartment. However, it plays a big role in the look of the car. Anscheidt wanted a very clear new signature rear view for Bugatti, and that became a single line that he calls “reduced magic.”

Bugatti

Source: Bugatti

The rear spoiler plays a big role in aerodynamics. Bugatti made it an active, full-width spoiler for best performance. At rest, it is completely tucked away so as not to disrupt the car’s lines. However, it comes up at 50 mph and raises to various levels. It mainly acts as an airbrake, tilting up to 90 degrees. “If you’ve ever had a chance to come down from 400 kph [248 mph] to 0 as fast as you can, you realize how important an airbrake is for Bugatti,” Anscheidt said.

The rear end is more efficient than the Veyron’s, meaning the Chiron is capable of achieving higher top speeds. Right now, Bugatti says the top speed is limited to 261 mph, but the company is not saying how fast the Chiron or a version of it can ultimately go.

The front view

Bugatti

Source: Bugatti

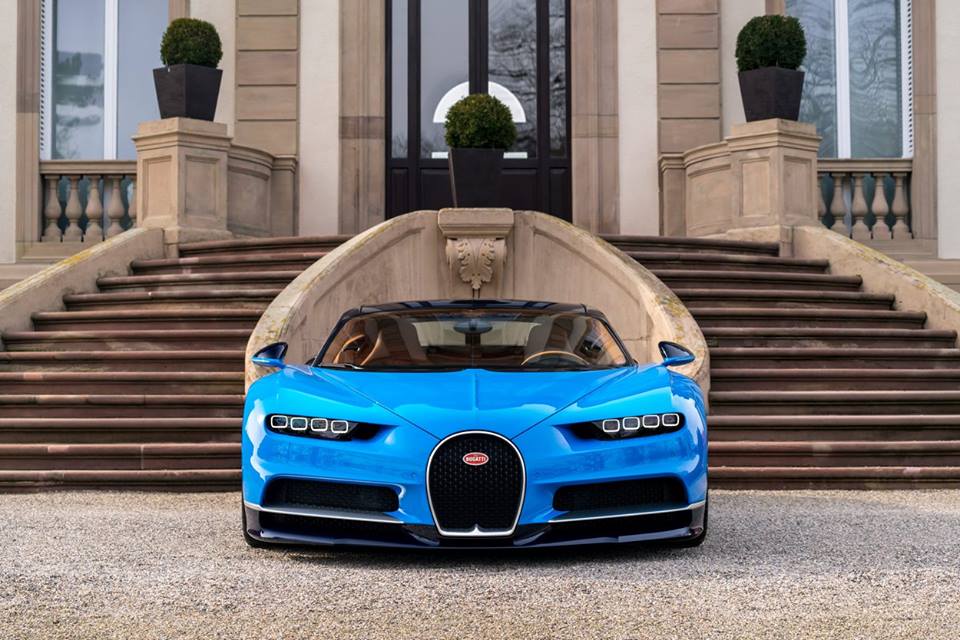

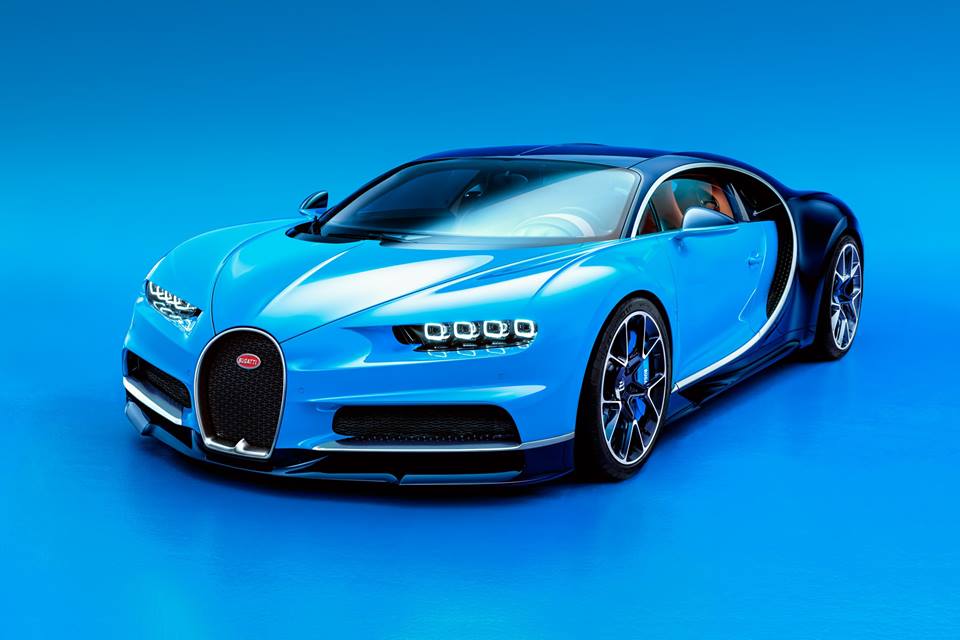

Like the rest of the car, the front end is all about cooling and aerodynamics. “One of the most critical things about a supercar is the front brakes. When you drive it hard, the first thing that’s going to give is probably the temperature of the front brakes because that temperature goes into the wheel and that goes into the tires, and then the tires start to get really soft,” Anscheidt said. To combat that issue, the car has air intakes in the headlight design. That air leads directly down to the brakes and pushes the hot air out through the wheels.

The lower air intakes are more conventional and they help cool several radiators, as well as the brakes.

Of course, the most pronounced element of the front end is the horsecollar grille. It is designed for airflow, but its look goes all the way back to the first Bugattis of the 1920s.

Nods to the past

Bugatti

Source: Bugatti

There are other nods to the past as well, and they are almost exclusively based on the Type 57 Atlantic of 1938. Just four of those cars were ever built, but they are viewed as the high point of Bugatti design. “The Atlantic is such a strong asset in our history. We in the design studio cherish that car,” Anscheidt said. For inspiration, Anscheidt and his team examined a perfect example owned by noted collector Peter Mullin.

“If you know where the character lines sit on an Atlantic, you will see that they are one-to-one identical,” Anscheidt said. “The two fender lines that you see on the Atlantic, and the rear fender lines and center line, they so characterize that car and they also stylistically characterize the form language on this car.”

The Atlantic also provided the inspiration for the strong center line of the car. It starts up front behind the grille and extends all the way down the spine of the car.

Interior design

Bugatti

Source: Bugatti

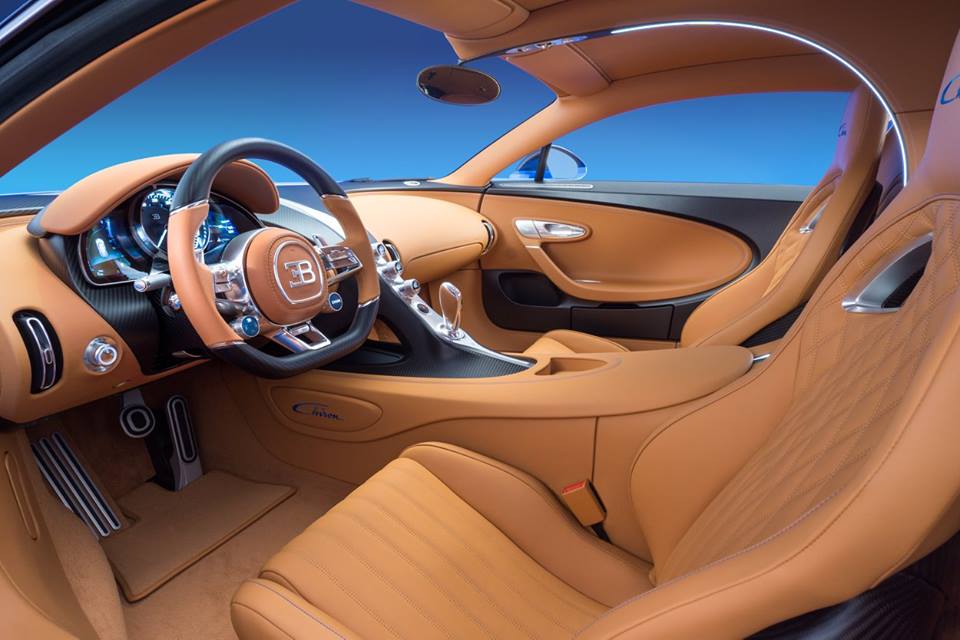

The center line even shoots into the interior and shoots back out over the roof. The C shape is also reflected in the interior, incorporating itself into the center line.

Otherwise, the interior adds a bit of civility to this monster of a car, and yet it has a sportier feel than the Veyron’s cockpit. “In this balance of beauty and beast, the car in all aspects became quite a bit more beast. The interior reflects that in its architectural layout,” Anscheidt said. “The passenger and driver have a more secluded, sporty compartment, and all the functions move from the center console to the driver’s hand on the steering wheel.”

Final thoughts

The Chiron’s design is certainly cleaner than the Veyron’s, and the lines allow the car to perform better than that car. In fact, it may be the fastest production car ever. Think of the look what you will, but every line and detail is there for a reason.
